2002 Honda Accord 3.0L - Engine Compartment Layout

These are pictures to help you locate basic items on this particular vehicle.

Affiliate Disclosure: As an Amazon Associate, we may earn commissions from qualifying purchases from Amazon.com.

This vehicle is a 2002 Honda Accord with a 3.0 Liter engine.

Here is a list of tools I use every day at the shop. Let me know if you use them too in the comments!

General Layout

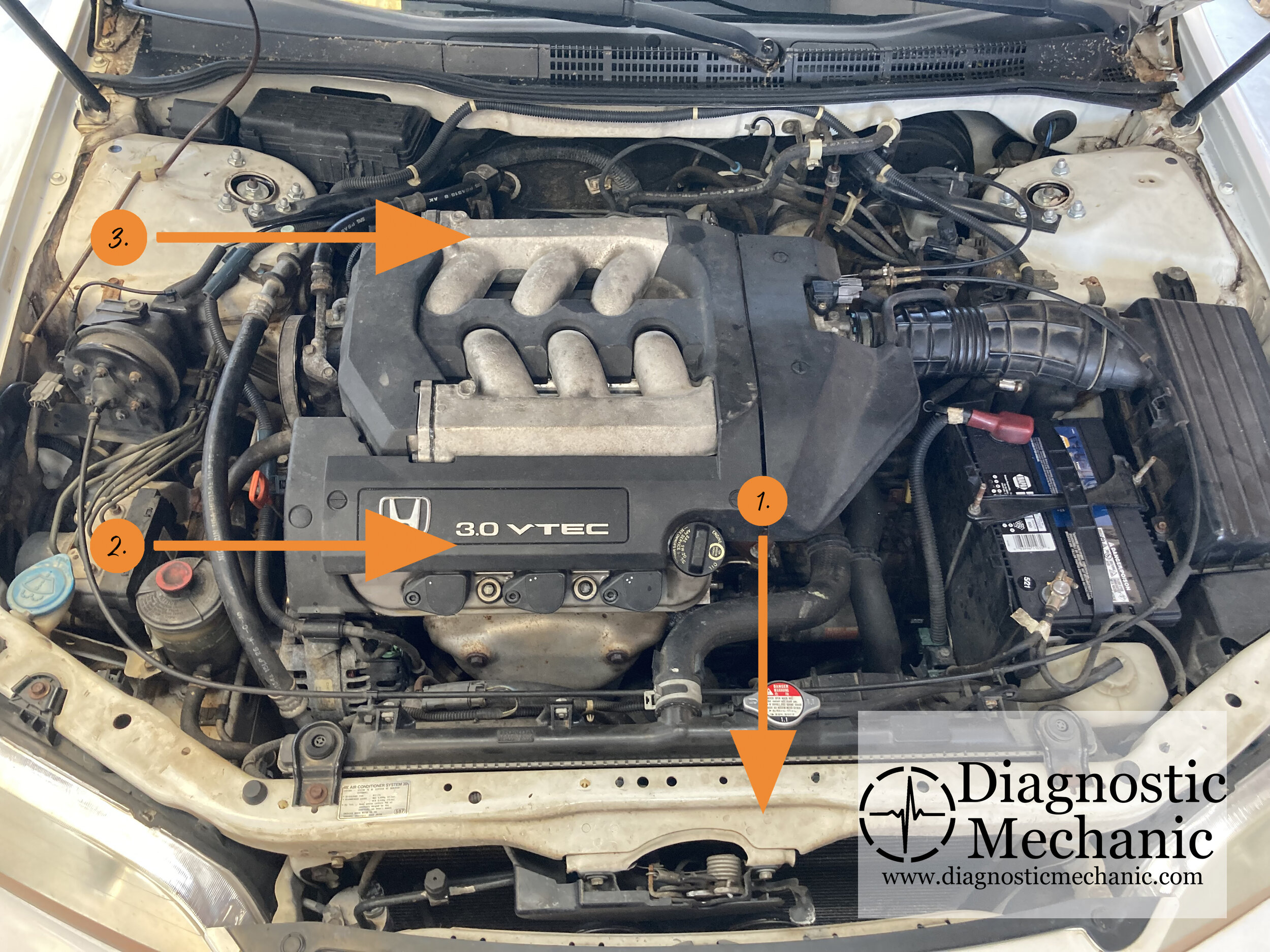

2002 Honda Accord 3.0L - Engine Compartment Layout

  1. Front of Vehicle

  2. Bank 2

  3. Bank 1

Charging/Starting/Electrical System

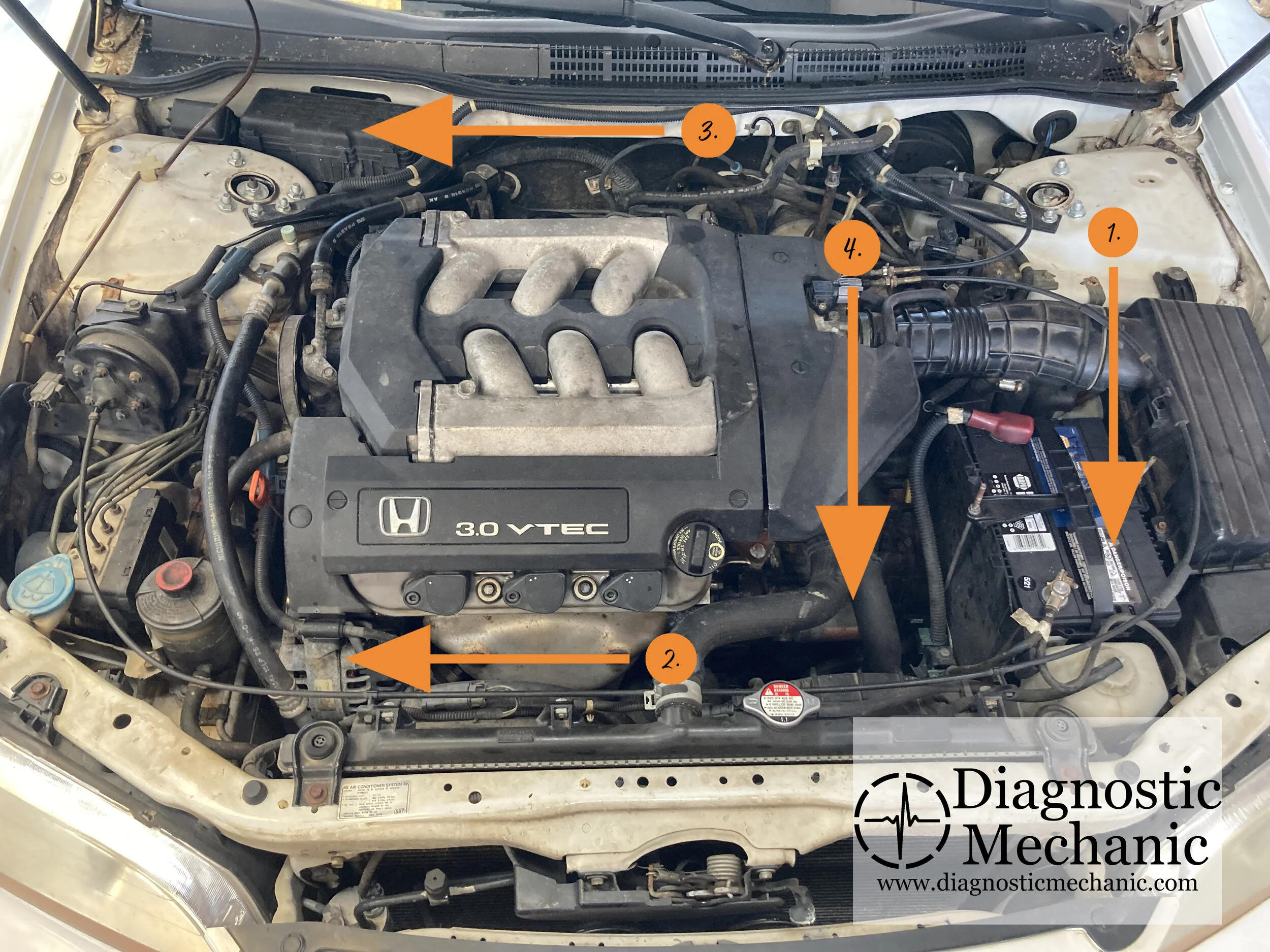

2002 Honda Accord 3.0L - Engine Compartment Layout

  1. Battery

  2. Alternator

  3. Fuses

  4. Starter

Fuel/ Intake System

2002 Honda Accord 3.0L - Engine Compartment Layout

  1. Air Box/ Air Filter

  2. Air Intake Tube

  3. Throttle Body (Under Cover)

  4. Intake Manifold

  5. Injectors (Under Cover)

  6. Throttle Cable

Ignition System

2002 Honda Accord 3.0L - Engine Compartment Layout

  1. Bank 2 Ignition Coils and Spark Plugs

  2. Bank 1 Ignition Coils and Spark Plugs

Maintenance Items

2002 Honda Accord 3.0L - Engine Compartment Layout

  1. Air Filter

  2. Washer Fluid

  3. Power Steering Fluid

  4. Belts

  5. Coolant Reservoir

  6. Radiator Cap

  7. Brake Fluid

  8. Oil Dipstick
